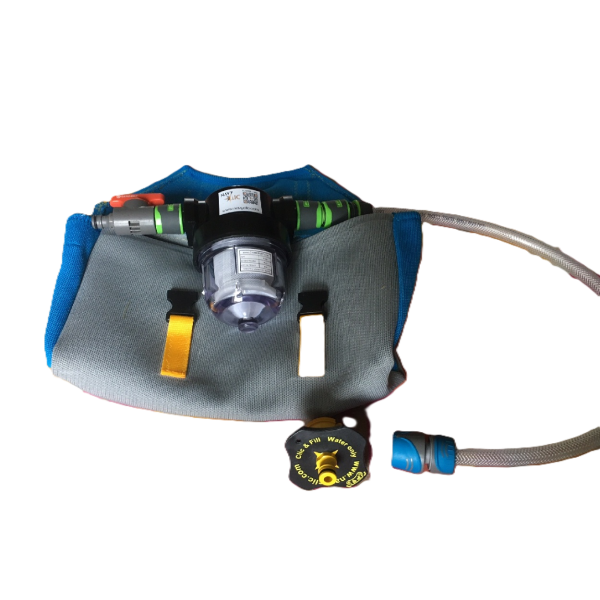

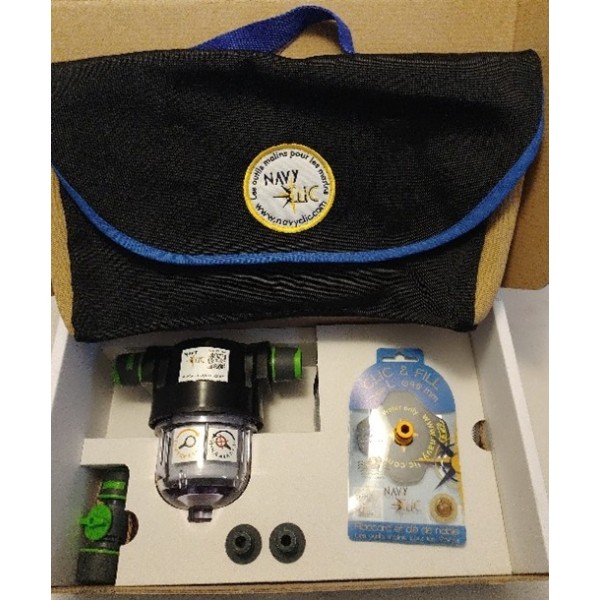

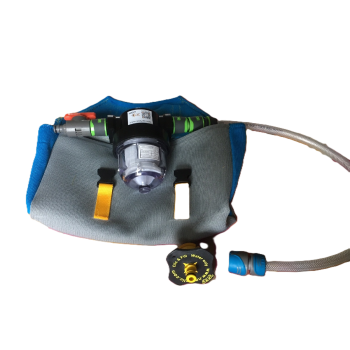

Contents of the refill kit

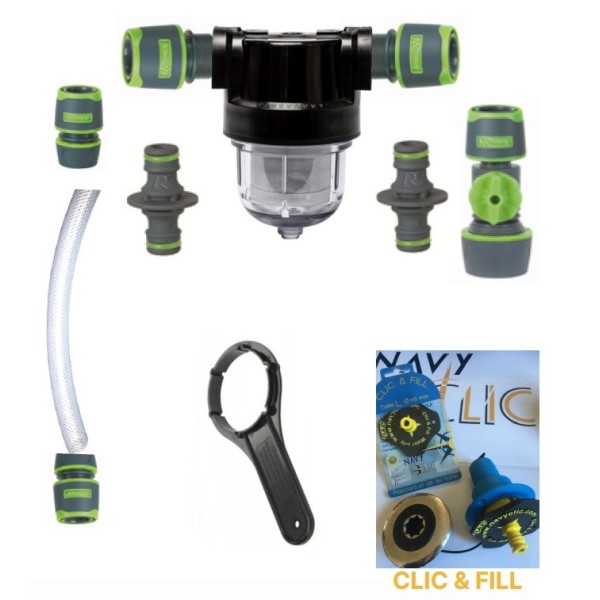

The refill kit contains the following items:

  • 1 storage bag to be placed on the filter housing
  • 1 S 60 filter and 25 μm paper filter fitted with garden hose connectors
  • 1 ¼-turn filter inlet valve
  • 2 male-to-male connectors
  • 1 x 70 cm food-grade filter outlet hose fitted with garden hose connectors
  • 1 Clic & Fill, size "L" or "S" as requested
  • 1 Pack of 5 replacement paper filters
  • 1 Filter bowl release key
  • 1 Filtration Kit instruction manual
  • 1 Clic & Fill instruction manual

Instructions for using the refill kit

To ensure the refill kit is used correctly, it is important to follow these steps:

  1. Attach the bag to the railing or handrail using the Velcro strips on the back of the bag (holds up to 5 kg)
  2. Open the drain plug using the Clic & Fill
  3. Screw the Clic & Fill onto your drain plug without tightening it fully; this is not a watertight seal, just a secure hold
  4. Position the male-to-male connectors on either side of the filter
  5. Connect the transparent hose to the OUTLET side of the filter
  6. Connect the other end to the Clic & Fill
  7. Place the valve on the end of the supply hose
  8. Connect the valve to the INLET side of the filter (follow the arrow)
  9. Connect the supply hose to the mains water supply
  10. Open the valve until water flows out of the tank vent or the Clic & Fill vents
